Cleanroom Orbital Seam Welder for Semiconductor Gas Piping with Water Cooling and Full Weld Documentation

Case Study: Contamination-Free Orbital Welding for Semiconductor Facilities

A semiconductor fabrication plant in Southeast Asia required ultra-clean orbital welding for its high-purity gas delivery systems. The project demanded mirror-like internal weld beads, minimal heat-affected zone, and full traceability of every joint. Hyzont's cleanroom orbital seam welder (Model CHF-45) was selected for the task.

Challenge

• Welding 38-114 mm electropolished stainless steel tubing in cleanroom environment
• Zero contamination and oxidation inside the weld zone
• Strict documentation requirements for semiconductor industry audits
• Continuous operation with high duty cycle

Solution

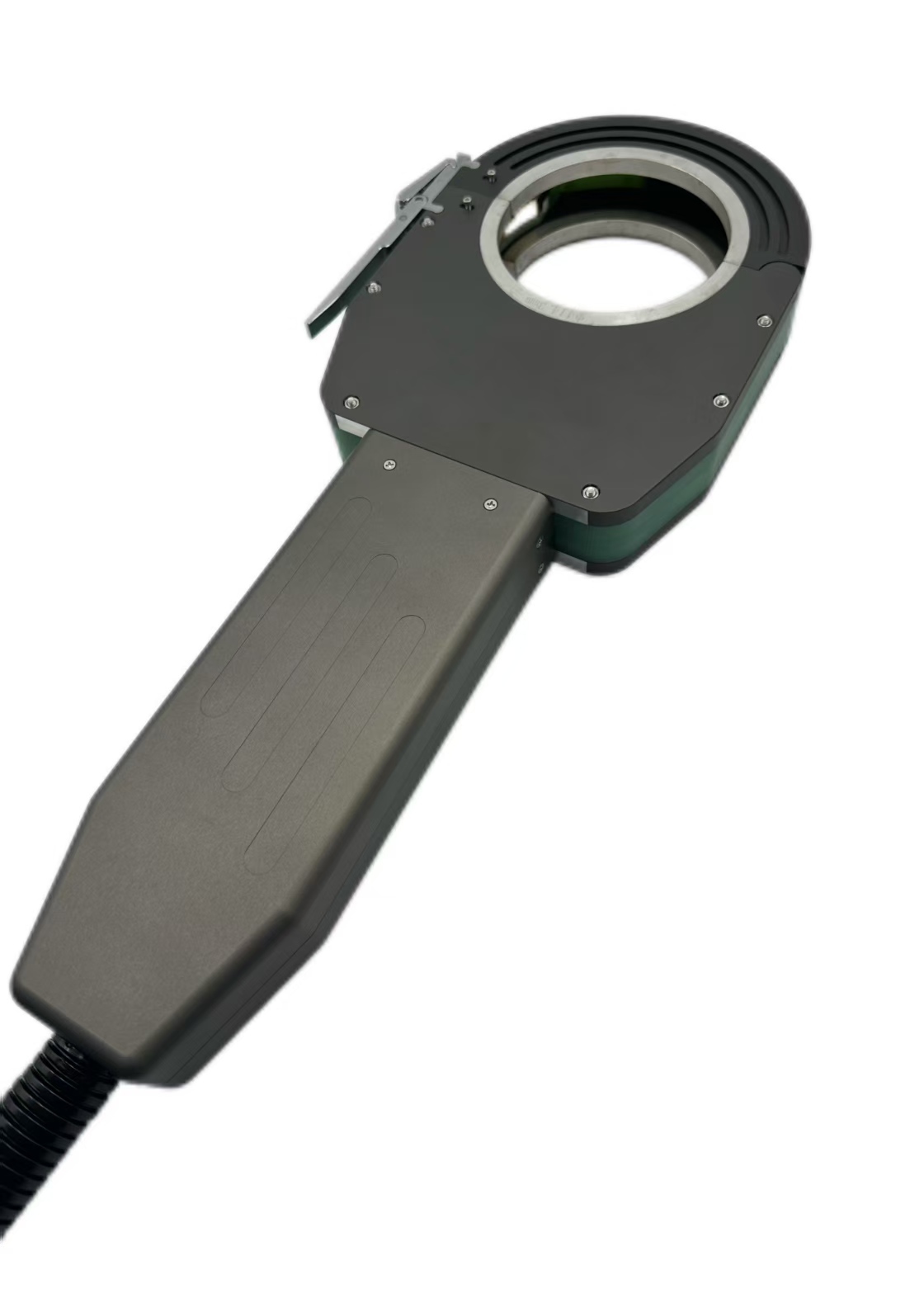

The CHF-45 cleanroom orbital seam welder features a water-cooled welding head that maintains stable temperatures during continuous operation, ensuring consistent weld penetration on every joint.

Results

• Weld bead internal profile met SEMI standards on first inspection
• Oxidation-free joints verified by borescope inspection
• Data logging provided complete traceability for every weld
• Project completed 2 weeks ahead of schedule

The semiconductor facility continues to use Hyzont cleanroom welders for all new tool installations and facility expansions.

The Importance of Clean Welds in Semiconductor Gas Systems

In semiconductor manufacturing, process gases must remain ultra-pure. Any contamination in welded joints can introduce particles, moisture or oxygen that degrade wafer yields. Orbital welding with proper gas purging produces smooth, crevice-free internal weld beads that minimize particle entrapment and outgassing. The water-cooled welding head allows continuous operation without overheating, maintaining consistent weld quality even during extended production runs.

Comprehensive Weld Documentation

• Every weld joint is automatically numbered and recorded
• Welding parameters such as current, voltage, travel speed and gas flow are logged
• Data export via USB for quality assurance records and client reporting
• Real-time monitoring alerts operators to any parameter deviation

Industries Served

Beyond semiconductor fabrication, Hyzont cleanroom orbital welders are widely used in pharmaceutical cleanrooms, biotechnology facilities, food and beverage processing, dairy plants, breweries and specialty gas industries. The same machine platform can be configured with different welding head sizes to cover tube diameters from 6 mm to 114 mm, providing a flexible investment that grows with your facility.

Support and Service

Hyzont provides comprehensive pre-sales consultation, installation supervision, operator training and lifetime technical support. Our international service team responds quickly to ensure minimum downtime. Spare parts are available for fast delivery worldwide, and our engineers can provide remote diagnostics to resolve issues promptly.

Request a Demonstration

Contact Hyzont to arrange a live demonstration or sample weld test with your actual tubing. Our application engineers will evaluate your requirements and demonstrate how the cleanroom orbital seam welder can meet your purity, quality and productivity targets.
